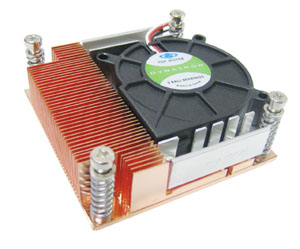

DC1U-P33G

IntelRLGA775 1U server active cooler up to 3.4GHz for 630 / 640 /650 /
520 / 520j / 530 / 530j / 540 / 540j / 550j

Specification Weight:820 g
Dimension: 83L x 87W x 26.5H(mm)
RoHS Compliance
DC FAN Dimension Blower 60x60x15 mm
Speed 6000 rpm
Bearing 2 Ball
Rated Voltage 12 V
Power 5.64 W
Air Flow 7.4 cfm
Noise Level 49.8 dBA
Air Pressure 1.12 inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Red (+)
Pin3-Techometer/Signal output
Heatsink

Material : Copper
Dimension: 83.0 x 84.0 x 26.5 mm

Fan & Heatsink:
Dimension
Bearing Rated Voltage Operation Voltage Rated Current Rated Input Power Max. AirFlow Max.Air Pressure Speed Operation Temp.
mm V V A W CFM inch-H2O RPM ¢XC
Blower 60x60x15 2 Ball 12 12¡Ó15% 0.47 5.64 7.4 1.12 6000 -10¢XC ~ +65¢XC
Skiving Heat Sink:
  • Material: Copper
  • Dimension: 83.0 x 84.0 x 26.5
  • Pitch: 1.8 mm
  • Thickness of fin: 0.5 mm
  • Number of fins: 46
  • Height of fin: 20.5 mm
  • Height of base: 6 mm
  • Length of base: 83 mm
