Product/CPU COOLER/DC2U-A27G

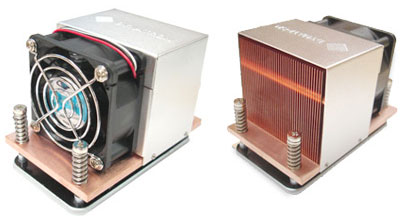

DC2U-A27G

AMDR Socket AM2 for 2U Server and up

Specification Weight:750g
Dimension: 106L x 73W x 66H(mm)
RoHS Compliance
DC FAN Dimension 60 x 60 x 25 mm
Speed 7000rpm
Bearing 2 x Ball
Rated Voltage 12 V
Power 4.8W
Air Flow 35.3
Noise Level 45.9dBA
Air Pressure 0.33inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Red (+)
Pin3-Techometer/Signal output
Heatsink Copper Heatsink with L Fin
