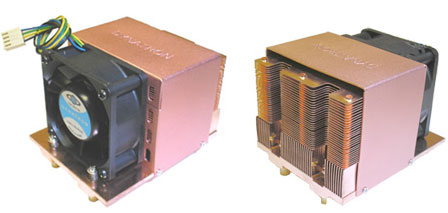

DC2U-H6EG
2U active cooler w/heat pipe, Intel Xeon Dempsey Socket 771 3.73GHz & up for 2U server. With 4pins PWM side-blown fan to get the best performance and lowest noise.
| Specification | Weight:820 g Dimension: 94L x 76.5W x 67.0H(mm) |
|
| DC FAN | Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 25%: 5500 rpm At Duty Cycle 50%: 6500 rpm At Duty Cycle 100%: 8500 rpm |
|
| Bearing | Double Ball Bearing | |
| Rated Voltage | 12 V | |
| Power | At Duty Cycle 25%: 2.5W At Duty Cycle 50%: 3.6 W At Duty Cycle 100%: 7.92 W |
|
| Air Flow | At Duty Cycle 25%: 28.91 cfm At Duty Cycle 50%: 34.16 cfm At Duty Cycle 100%: 44.68 cfm |
|
| Noise Level | At Duty Cycle 25%: 13.1 dBA At Duty Cycle 50%: 39.5 dBA At Duty Cycle 100%: 48.8 dBA |
|
| Air Pressure | At Duty Cycle 25%: 0.329 inch-H2O At Duty Cycle 50%: 0.460 inch-H2O At Duty Cycle 100%: 0.786 inch-H2O |
|
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
|
| Heatsink | Material:
Copper Dimension: 94 x 76.5 x 26 mm |
|
