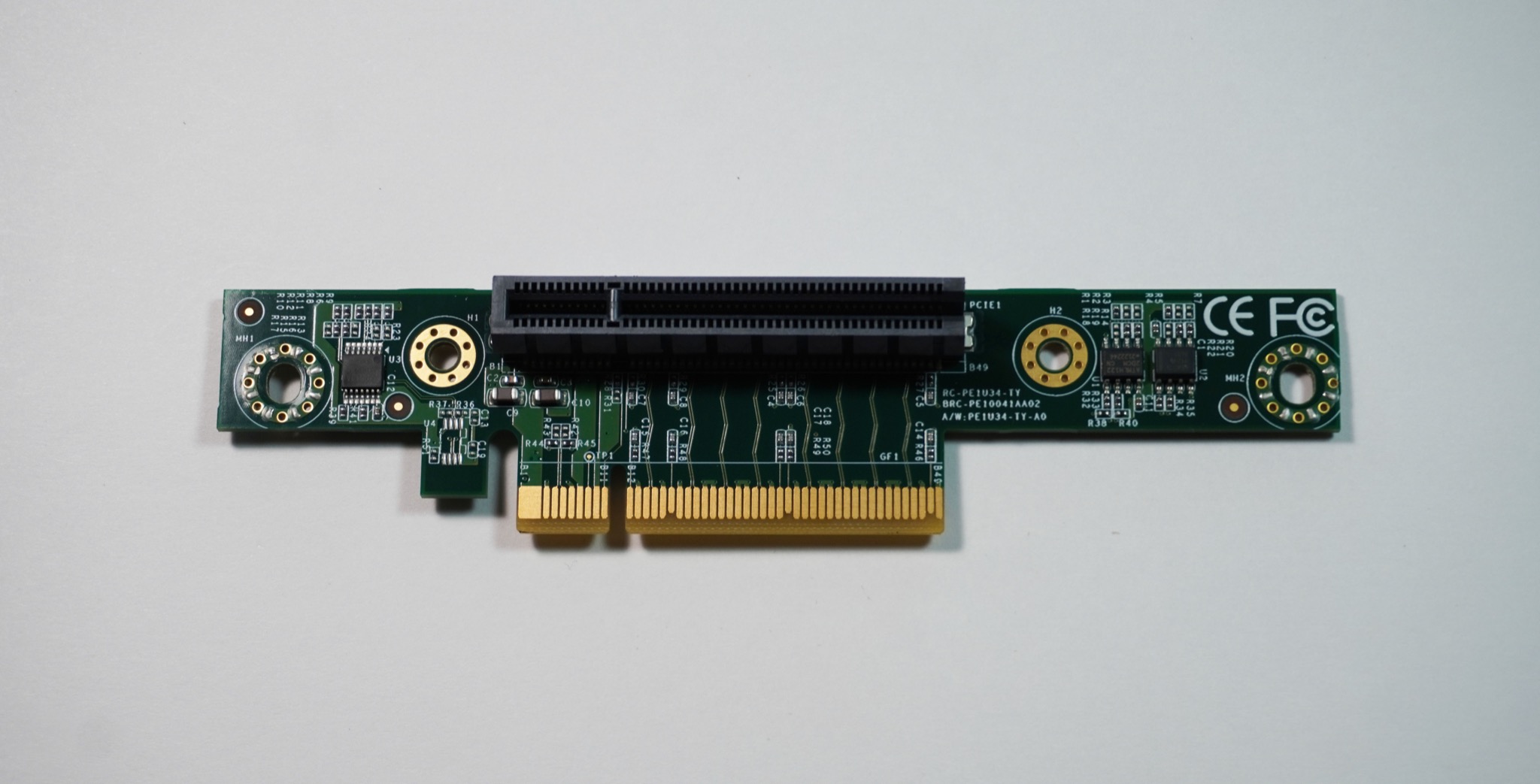

The x8 board. An open-end x8 slot with re-drivers on it: a full x16 card seats and runs at x8, on the same 1U rear cutout as the x16 board. Passed testing on RTX 4090.
| Slot | PCIe x8 open-end right-angled female |
|---|---|
| Generation | PCIe x8 Gen4 |
| Dimension | 135.30 mm × 30.35 mm |
| Mounting hole pitch | 122.33 mm |
