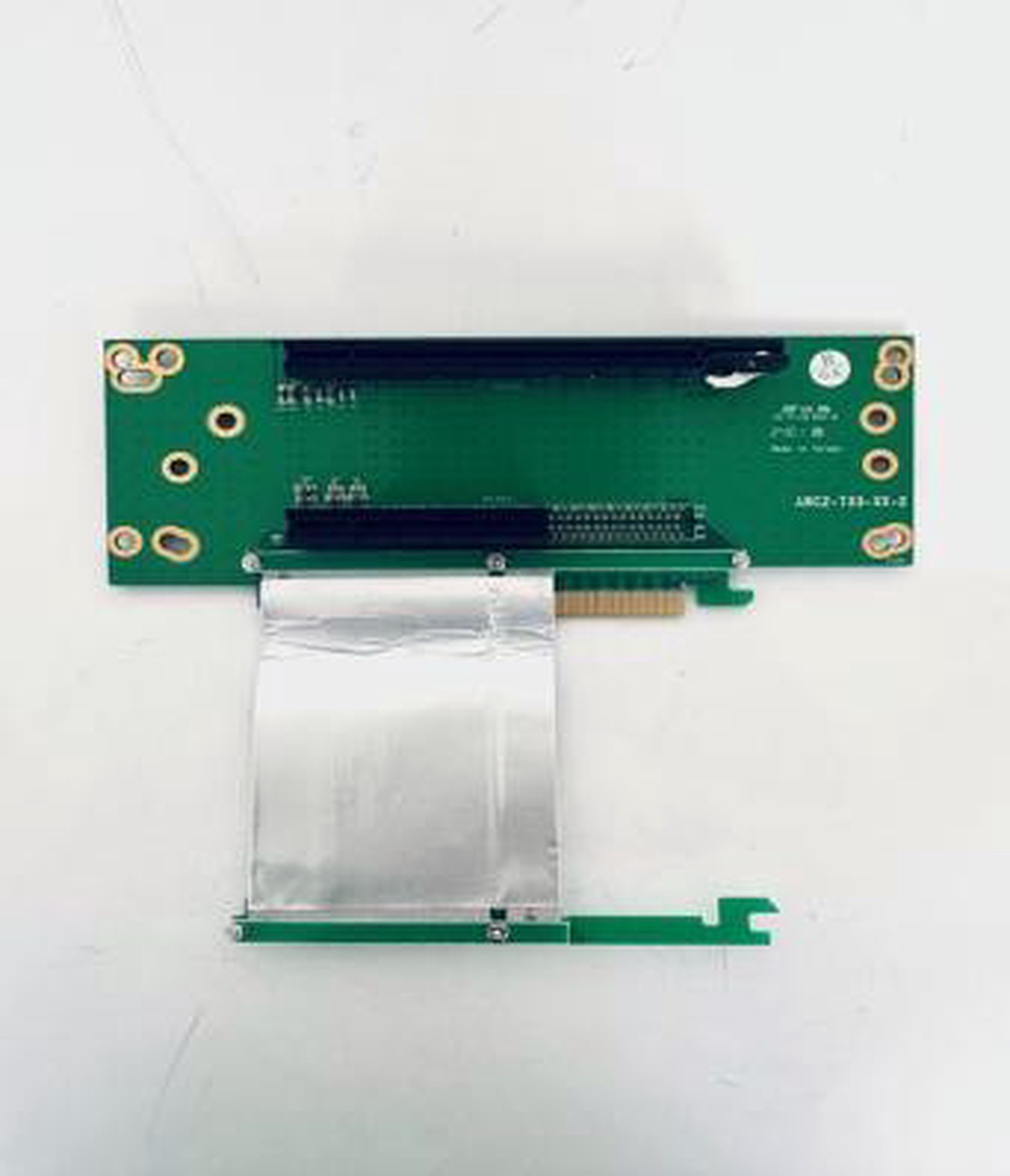

A double-spaced GPU on the top slot at 2.6 in, an open-end x8 on the bottom at 0.98 in, and a 9 cm ribbon back to board slot 2.
| Top slot | PCIe x16, double-spaced GPU |
|---|---|
| Bottom slot | PCIe x8 open-end, 9 cm ribbon |
| Slot heights | 2.6 in top · 0.98 in bottom |
| Dimension | 2 7/8 in H × 7 1/16 in W |
