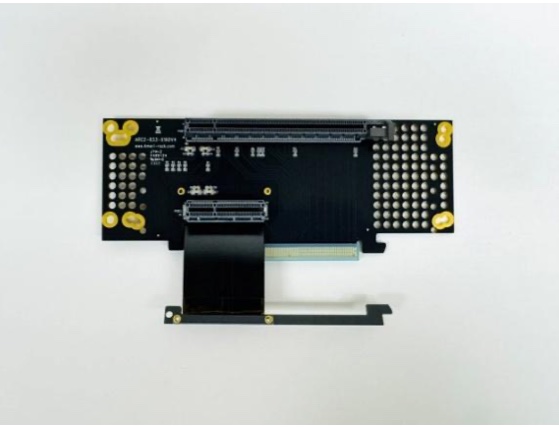

ARC2-833-X160X4C6V4S
2U two-slot PCIe riser: x16 Gen4 on top + x4 on 6 cm ribbon to slot4
A double-spaced x16 Gen4 slot on top for a GPU and an open-end x4 Gen4 slot on the bottom, fed over a 6 cm ribbon to board slot4. The board is also offered with 8 cm and 10 cm ribbons for slot3 and slot2 (C8V4S, C10V4S).
| Riser slots | PCIe x16 (Gen4) + PCIe x4 (Gen4) |
|---|---|
| Ribbon | 6 cm, to board slot4 |
| Slot heights | 2.6 in top · 0.98 in bottom |
| Dimension | 2 7/8 in H × 7 1/16 in W |
