ARC2-011
ARC2-011E
ARC2-011-Cx

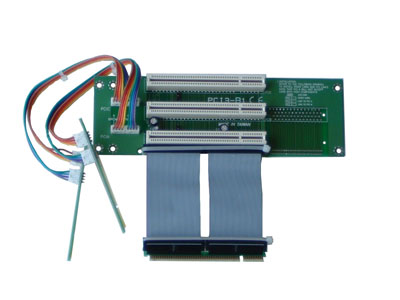

2U 3-slots PCI-32bit/5V/33MHz riser card w/custom lengths of ribbon cable.

ARC2-011 (w/2.5cm cable)
ARC2-011E (w/7cm cable)
ARC2-011-Cx(w/custom lengths of ribbon cable up to 20cm)

Middle riser slot linked to the connector with wide ribbon cable. Top and botton riser slots linked with 8-wires paddle link from behind or in front of PCB to connect to the other two PCI-32 motherboard slots.

Up to 3-slots expansion for PCI-32 slots away from the motherboard.
